Product Details:
|
| Product Name: | PP Biaxial Geogrid 2020 | PP Biaxial Geogrid Width: | 3.95m |
|---|---|---|---|
| PP Biaxial Geogrid Length: | 50-100m | PP Biaxial Geogrid Color: | Black |
| PP Biaxial Geogrid Application: | Slop Protecting Projects | ||
| Highlight: | PP Biaxial Geogrid 50mm,PP Biaxial Plastic Geogrid,Slope Protection Polypropylene Geogrid |
||

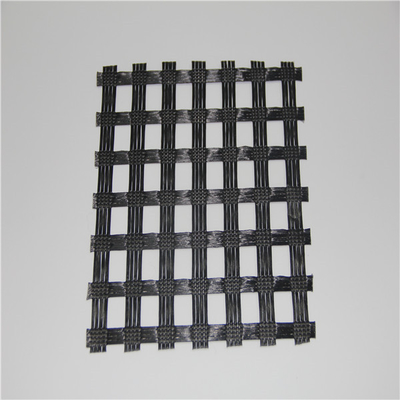

PP Biaxial Plastic Geogrid PPBG2020 For Slop Protecting Projects
PP Biaxial Geogrid Introduction:
The raw material of pp biaxial geogrid is PP. It is produced through extruding, punching, heating, longitudinal stretching, transverse stretching.
PP Biaxial Geogrid Performance:
It have high tensile strength at both longitudinal & transverse dire.
PP Biaxial Geogrid Application:
PP Biaxial Geogrid Specification:
| Index properties |
Test Method
|
Units
|
MD Values
|
TD Values
|
| Polymer | - | - | pp | - |
| Carbon Black Min | ASTM D 4218 | % | 2 | - |
| Tensile strength @2% Strain | ASTM D 6637 | KN/m | 7 | 7 |
| Tensile strength @5% Strain | ASTM D 6637 | KN/m | 14 | 14 |
| Ultimate tensile strength | ASTM D 6637 | KN/m | 20 | 20 |
| Strain @ Ultimate strength | ASTM D 6637 | % | 13 | 13 |
| Junction Efficiency | GRI GG2 | % | 90 | 90 |
| Overall Flexural Rigidity | ASTM D 1388 | mg-cm | 1090,000 | - |
| Aperture Stability | COE Method | mm-N/deg | 707 | - |
| Aperture Dimensions | - | mm | 38 | 36 |
| Minimum Rib Thickness | ASTM D 1777 | mm | 1.3 | 1.0 |
| Roll Width | - | m | 3.95 | - |
| Roll Length | - | m | 50 | - |
| Roll Weight | - | kg | 50 | - |
PP Biaxial Geogrid Packing:
The roll is 3.95mx50m. And 41475M2(210 rolls) in a 40HQ.
PP Biaxial Geogrid Sample:
For small quantity of sample, we can provide you sample free of charge, but the freight will be on your account, pls understand.
