Product Details:
|
| Diameter (mm): | 0.75 | Length (mm): | 50 |
|---|---|---|---|
| L/D: | 66 | TS (MPa)±7.5% Type: | 1100 |
| Type: | Loose /Glued | ||
| Highlight: | Impact Resistance Steel Fiber,Hooked End Steel Fiber,Fatigue Resistance Steel Fiber |
||

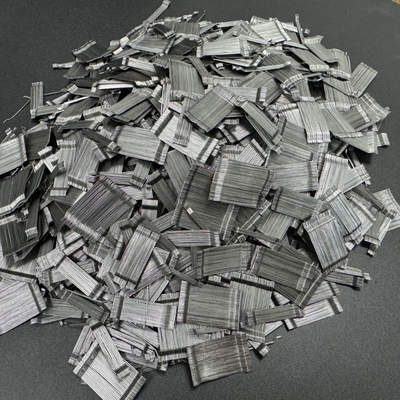

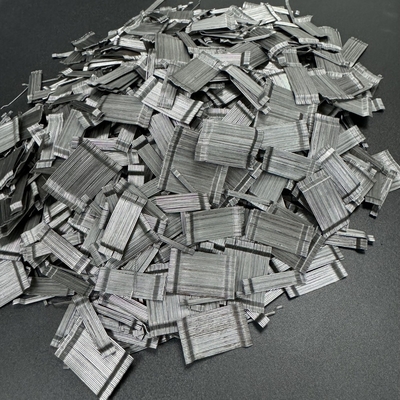

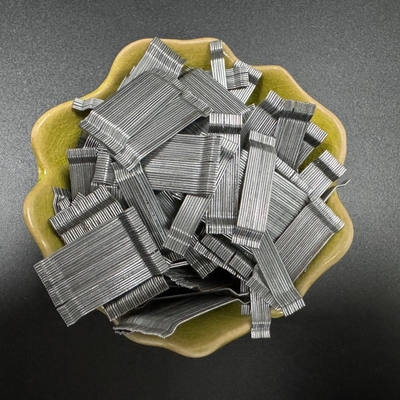

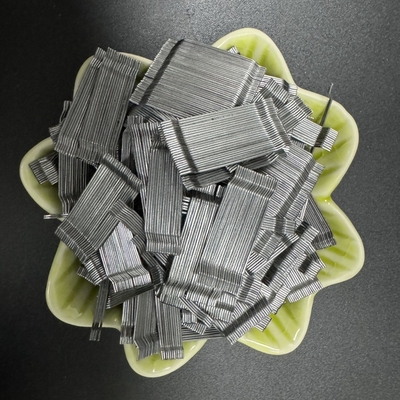

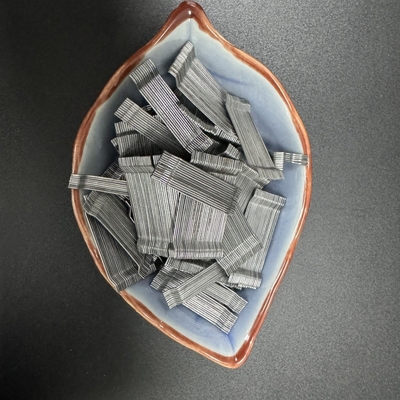

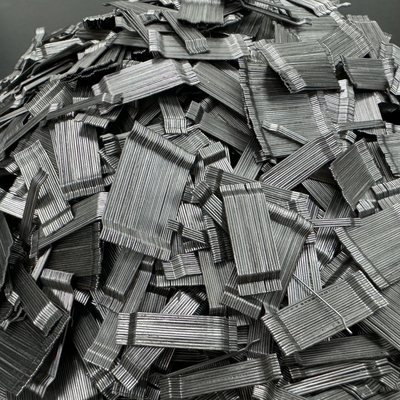

Steel Fiber Hooked End Type
Product Description
The end hook bonded steel fiber are prominent: good dispersion, tensile strength not less than 1000MPa, shape of the end hook is not easy to pull out, economy, and good water solubility of the bonded steel fiber.
Material properties: high quality and high speed wire.
The bonded steel fibers are widely used in factory floors, highways, bridges, airport runways, tunnels, pipelines, linings of infrastructure, ports and wharves, marine engineering, nuclear test bases, rocket launch bases and earthquake resistant buildings.
It can ensure that the fibers do not agglomerate and disperse evenly in concrete mixing, and can improve the impact resistance and fatigue resistance of concrete and the impermeability of concrete. Because of its high tensile strength, good toughness and low price, compared with other shapes of steel fibers, its tensile strength, compressive strength and flexural strength have been greatly improved, which is suitable for some key anti-seismic and anti riot structural projects. It has been widely used in roads, highway slope protection bridges, tunnels, airports, ports, railway sleepers and so on.
Specification:
| Item | Diameter (mm) | Length (mm) | L/D | TS (MPa)±7.5% | Type |
| 80/60 | 0.75 | 60 | 80 | 1100, 1800 | Glued |
| 80/50 | 0.62 | 50 | 80 | 1200 | Glued |
| 65/60 | 0.9 | 60 | 65 | 1000, 1800 | Glued |
| 65/35 | 0.55 | 35 | 65 | 1200 | Glued |
| 4G 80/60 | 0.75 | 60 | 80 | 2100 | Glued |
| 5D 65/60 | 0.9 | 60 | 65 | 1800 | Glued |
| 1.0/50 | 1.0 | 50 | 50 | 1000, 1800 | Loose |
| 0.75/50 | 0.75 | 50 | 66 | 1100 | Loose /Glued |
| 1.0/60 | 1.0 | 60 | 60 | 1100, 1800 | Loose /Glued |
| 0.5/25 | 0.5 | 25 | 50 | 1200 | Loose |
| 0.6/30 | 0.6 | 30 | 50 | 1200 | Loose |
| 0.75/35 | 0.75 | 35 | 45 | 1100 | Loose /Glued |
Application
1. Highway Bridge
2. Hydraulic dam
3. Railway Engineering
4. Port and marine engineering
5. Tunnel and mine engineering
Construction suggestions
The steel fiber content can be 30-80kg / m3 for pavement construction and 50-100kg / kg / m3 for bridge construction
Steel fiber concrete mixing process: the construction is carried out according to the conventional construction, and no special adjustment is required
Packing
20kgs or 1200kgs net each bag, 24MTS/ 1X20`FCL
